Front Derailleur Hanger Speedmachine 00 / 01 Black: The Ultimate Replacement Guide for BMC Speedmachine Owners

If you’re a serious triathlete or time trial enthusiast riding a BMC Speedmachine, you understand the importance of every single component working in perfect harmony. The Front Derailleur Hanger Speedmachine 00 / 01 Black is one of those critical yet often overlooked parts that can make or break your shifting performance on race day. Whether you’re dealing with a damaged hanger, upgrading your chainring setup, or simply performing routine maintenance, this genuine BMC replacement part is designed to restore your bike’s precision shifting capabilities.

In this comprehensive guide, we’ll dive deep into everything you need to know about the Front Derailleur Hanger Speedmachine 00 / 01 Black. From its compatibility and features to step-by-step installation tips and why choosing the official BMC part is essential, we’ve got you covered. If your BMC Speedmachine 00 or 01 Gen 1 is showing signs of front derailleur issues, this post will help you get back on the road (or track) faster than ever.

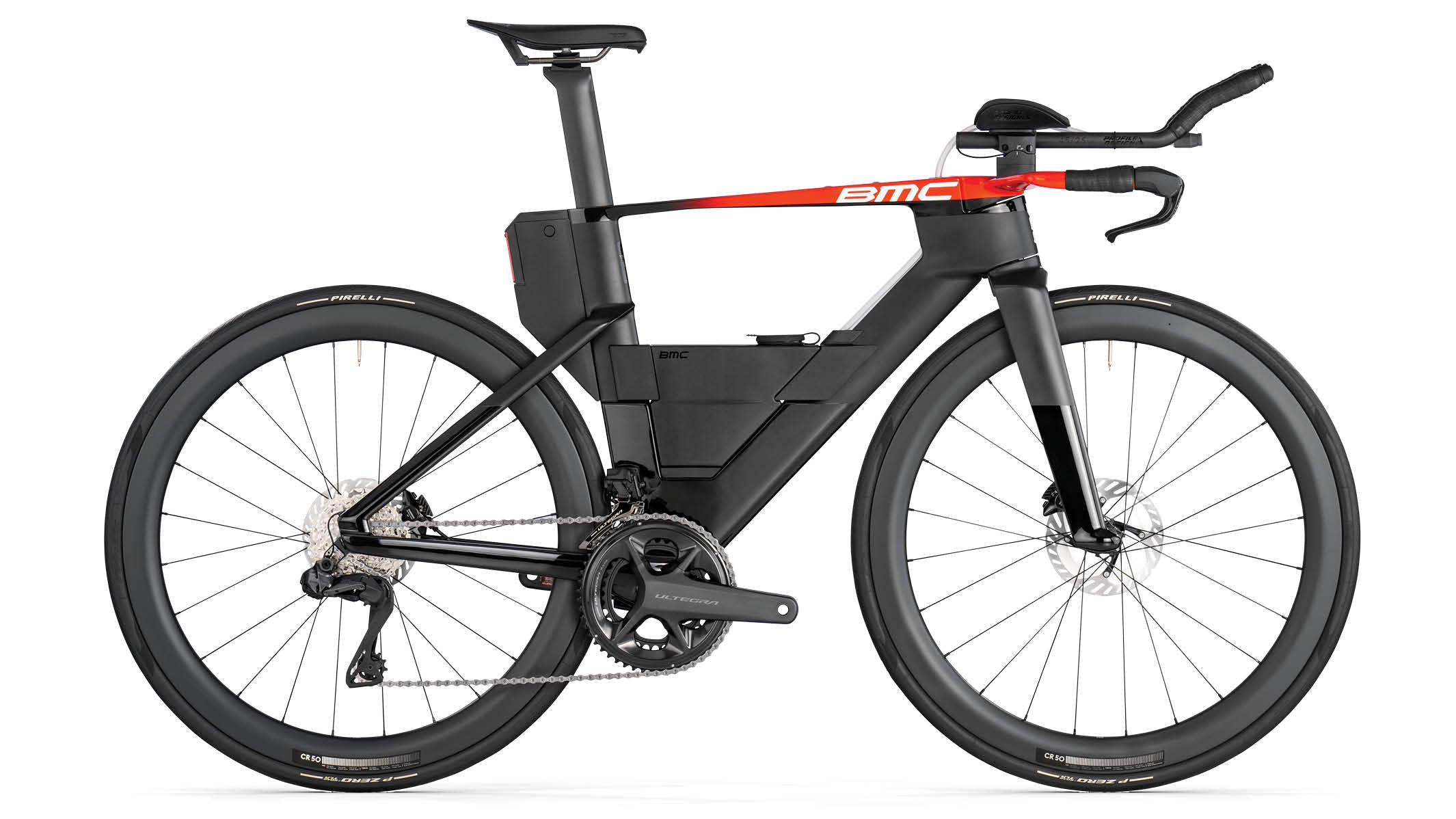

Image: The sleek BMC Speedmachine 00 LTD in action – a machine that demands top-tier components like the Front Derailleur Hanger Speedmachine 00 / 01 Black for optimal performance.

What Exactly Is the Front Derailleur Hanger Speedmachine 00 / 01 Black?

The Front Derailleur Hanger Speedmachine 00 / 01 Black is a precision-engineered mounting bracket and cover system specifically developed for the BMC Speedmachine 00 and Speedmachine 01 Gen 1 triathlon and time trial bikes. Introduced with the 2024 model year, this part ensures your front derailleur stays perfectly aligned for crisp, reliable shifts across a wide range of chainring sizes.

Unlike generic hangers, this BMC-specific component is CNC-machined for exact fitment on the Speedmachine’s aero-optimized frame. It comes in a sleek black anodized finish that matches the bike’s stealthy aesthetics while providing corrosion resistance in all weather conditions.

Key highlights include:

• Versatile Hanger Options: Includes both a “low” hanger for standard 2x setups and a “high” hanger for larger chainrings.
• 1x Compatibility Cover: A dedicated cover plate for single-chainring (1x) configurations, allowing seamless conversion without a front derailleur.
• Complete Hardware Kit: Four M4 x 16mm hex socket flat countersunk head screws for secure, vibration-free mounting.

This isn’t just a simple bracket – it’s a thoughtfully designed system that supports the Speedmachine’s high-performance drivetrain, whether you’re running SRAM RED eTap AXS, Shimano Dura-Ace Di2, or similar premium groupsets.

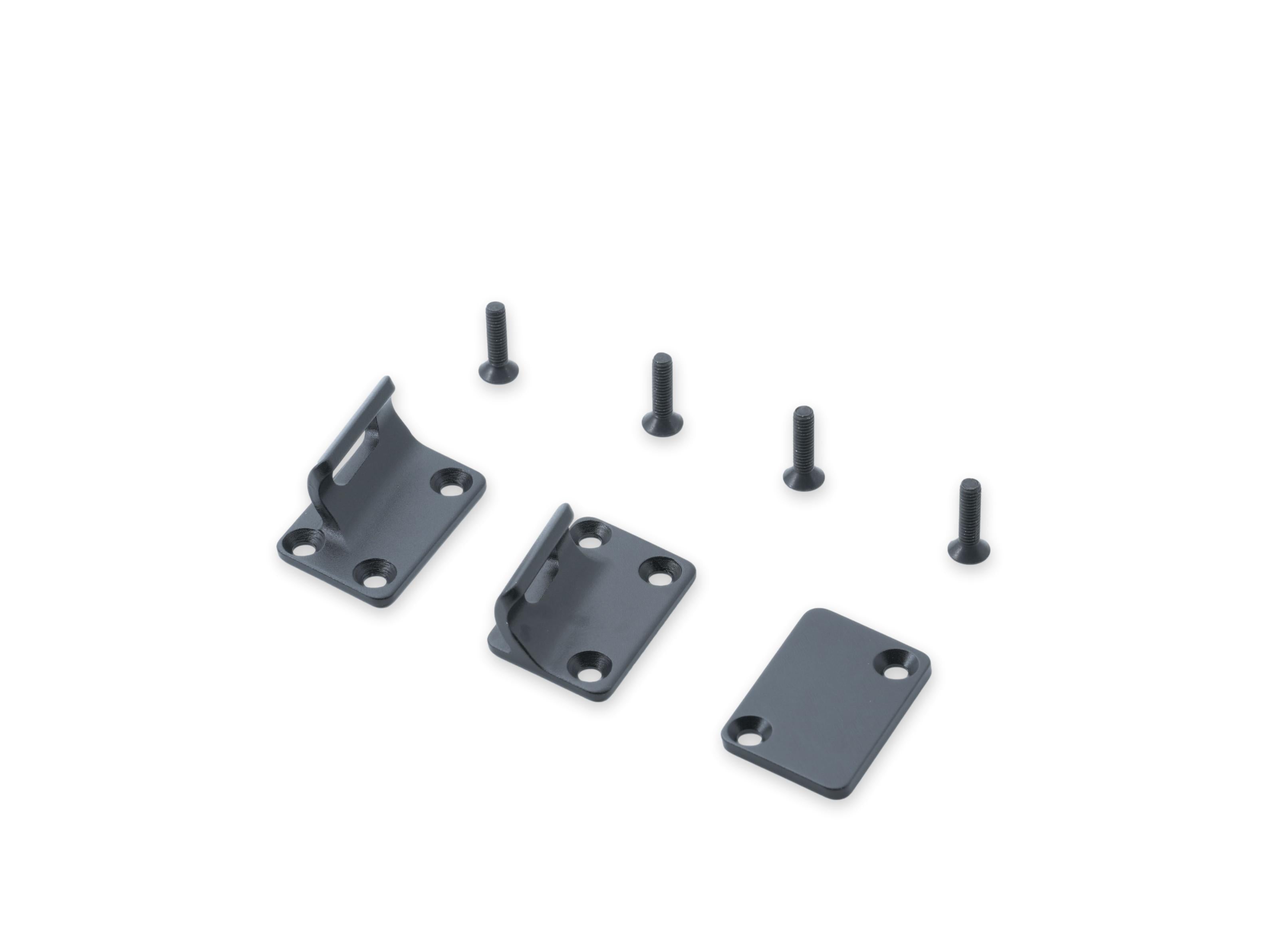

Image: The complete Front Derailleur Hanger Speedmachine 00 / 01 Black kit, showing the low hanger, high hanger, cover, and mounting screws.

Why Your BMC Speedmachine Needs the Right Front Derailleur Hanger

Modern tri bikes like the BMC Speedmachine are engineering marvels, but their integrated designs mean that even minor damage to the front derailleur mount can lead to major issues. Common reasons owners seek out the Front Derailleur Hanger Speedmachine 00 / 01 Black include:

• Crash Damage or Wear: A tip-over in transition or trailering mishap can bend or crack the stock hanger.
• Chainring Upgrades: Switching to larger outer chainrings (52T+) often requires the high hanger for proper derailleur positioning.
• 1x Drivetrain Conversions: Many racers prefer the simplicity of a single chainring for training and racing – the included cover makes this swap effortless.
• Preventive Maintenance: Over time, screws can loosen, or the hanger can develop play, leading to poor shifting and accelerated chain wear.

Using a mismatched or aftermarket hanger risks misalignment, rubbing chains, and inconsistent shifts – problems that can cost you precious seconds in a race. The genuine Front Derailleur Hanger Speedmachine 00 / 01 Black ensures everything stays dialed in.

Compatibility: Which Bikes Does the Front Derailleur Hanger Speedmachine 00 / 01 Black Fit?

This part is purpose-built for BMC’s flagship triathlon lineup:

• BMC Speedmachine 00 (all 2024+ variants, including LTD editions)
• BMC Speedmachine 01 Gen 1 (2024 models)

It does not fit earlier Speedmachine generations or other BMC models like the Roadmachine or Teammachine without modifications. Always verify your frame’s model year and generation before purchasing.

The hangers are optimized for:

• Low Hanger: Standard 2x setups with chainrings from SRAM 46-54T or Shimano 50-56T (mount height 141-153mm).
• High Hanger: Bigger 2x configurations with SRAM 52-59T or Shimano 56-60T (mount height 153-161mm).

This flexibility makes the Front Derailleur Hanger Speedmachine 00 / 01 Black ideal for athletes experimenting with different gearing ratios for various race distances and courses.

Image: Close-up of a front derailleur mounted on a BMC Speedmachine frame, highlighting the critical role of the hanger in clean shifting.

Step-by-Step Installation Guide for the Front Derailleur Hanger Speedmachine 00 / 01 Black

Installing the Front Derailleur Hanger Speedmachine 00 / 01 Black is straightforward for anyone comfortable with basic bike maintenance. You’ll need a 3mm hex wrench, torque wrench, and possibly some blue Loctite for the screws.

Tools Required:

• 3mm Allen key (or bit for torque wrench)
• Torque wrench (recommended: 4-6 Nm for the screws)
• Clean rags and isopropyl alcohol
• Optional: Front derailleur alignment tool

Installation Steps:

1. Prepare the Bike: Shift to the smallest chainring and remove the chain from the front derailleur for easier access. Prop the bike securely.
2. Remove the Old Hanger: Loosen the four mounting screws counterclockwise. Carefully pull away the old hanger and cover (if present). Clean the frame mounting area thoroughly to remove any debris or old grease.
3. Choose Your Configuration:
   • For 2x with standard chainrings: Use the low hanger.
   • For larger chainrings: Install the high hanger.
   • For 1x setup: Use the cover plate instead of a hanger.
4. Position and Secure: Align the new hanger (or cover) with the frame holes. Apply a small drop of thread locker to each screw. Hand-tighten first, then torque to 4-6 Nm in a criss-cross pattern.
5. Reinstall the Derailleur: Mount your front derailleur to the hanger using the derailleur’s mounting bolt. Adjust the height and angle so the outer cage is parallel to the chainring (about 1-2mm clearance).
6. Test and Fine-Tune: Reinstall the chain, shift through all gears, and check for rubbing. Use barrel adjusters on your shifters for final tweaks.

Pro Tip: If you’re converting to 1x, the cover not only looks clean but also maintains the frame’s aero profile.

Image: Detailed view of the Front Derailleur Hanger Speedmachine 00 / 01 Black components ready for installation.

Benefits of Choosing the Genuine BMC Front Derailleur Hanger Speedmachine 00 / 01 Black

Why spend a bit more on the official part instead of a cheap universal alternative? Here are the compelling reasons:

• Perfect Fit and Function: Designed in tandem with the Speed machine frame for zero compromises in aerodynamics or shifting.
• Durability: High-quality aluminum construction with black anodizing resists scratches, corrosion, and fatigue.
• Versatility Built-In: The dual-hanger + cover system future-proofs your setup for gearing changes.
• Warranty Protection: Using genuine BMC parts keeps your bike’s warranty intact.
• Peace of Mind: No guessing games with alignment or compatibility issues.

Owners report smoother shifts, quieter operation, and better long-term reliability compared to third-party options.

Common Front Derailleur Problems on the BMC Speedmachine (And How This Hanger Fixes Them)

Many Speedmachine riders encounter:

• Chain rub on the front derailleur cage.
• Slow or hesitant upshifts.
• Noisy drivetrain under load.

The Front Derailleur Hanger Speed machine 00 / 01 Black addresses these by providing precise positioning options tailored to your chainring size. The high hanger, in particular, is a game-changer for those running 54/40 or larger combos common in triathlon racing.

Maintenance Tips to Keep Your Front Derailleur Hanger in Top Shape

Once installed, maintain your Front Derailleur Hanger Speed machine 00 / 01 Black with these habits:

• Inspect screws every 1,000 miles or after travel.
• Clean the hanger area during regular bike washes.
• Apply a light coat of wax or dry lube to prevent grime buildup.
• Check alignment if you notice any shifting degradation.

For 1x users, the cover is virtually maintenance-free but benefits from occasional wiping.

Where to Buy the Front Derailleur Hanger Speedmachine 00 / 01 Black

The best place to purchase is directly from authorized BMC dealers or the official BMC website. Expect to pay around $19-$60 USD depending on the retailer. Look for part number 30006301 to ensure you’re getting the genuine article.

Popular sources include BMC’s online shop, specialized bike retailers like LVR Cycles, and platforms carrying official spares. Avoid unverified sellers to prevent receiving counterfeit parts.

Real Rider Experiences with the Speedmachine Front Derailleur Hanger

Triathletes upgrading their Speed machine often share similar feedback: “The high hanger made my 56T chainring setup shift like a dream,” says one reviewer. Another noted how the clean 1x conversion “shaved grams and improved aero without sacrificing reliability.”

Whether you’re a weekend warrior or chasing Kona qualification, this small part delivers big performance gains.

Conclusion: Don’t Let a Small Part Hold Back Your Big Goals

The Front Derailleur Hanger Speed machine 00 / 01 Black might be a humble component, but it’s vital to the legendary performance of the BMC Speedmachine 00 and 01. With its thoughtful design, included accessories, and perfect compatibility, it’s the smart choice for any owner looking to maintain, repair, or optimize their tri bike.

Ready to get your shifts sorted? Grab the Front Derailleur Hanger Speed machine 00 / 01 Black today and experience the difference a genuine BMC part makes. Your next PR awaits.

Have questions about installing the Front Derailleur Hanger Speed machine 00 / 01 Black on your BMC Speed machine? Drop a comment below – we’re here to help fellow riders crush their goals!
