Concentric Dropout Insert: Your Complete Guide to Enhancing Bicycle Frame Performance

In the world of cycling, where precision and performance go hand in hand, small components can make a massive difference. One such unsung hero is the concentric dropout insert. Whether you’re a custom frame builder, a mountain bike enthusiast, or simply someone looking to optimize your ride, understanding this part can elevate your biking experience. This guide dives deep into everything you need to know about the concentric dropout insert, from its basic functions to advanced applications, ensuring you have all the tools to make informed decisions.

What Is a Concentric Dropout Insert?

At its core, a concentric dropout insert is a specialized threaded component designed to fit into the rear dropout of a bicycle frame. Dropouts are the slots or fittings at the rear of the frame where the wheel axle attaches, and the insert acts as an intermediary piece that threads into the dropout to secure a thru-axle system. Unlike traditional quick-release setups, thru-axles provide greater stiffness and security, which is why they’re increasingly popular in modern bikes, especially for off-road and high-performance riding.

The term “concentric” refers to the insert’s design where the threading is perfectly centered. This allows for precise wheel alignment without the offset adjustments found in eccentric variants. Typically made from durable materials like anodized aluminum or titanium, these inserts are lightweight yet robust, weighing as little as 6 grams in some models. They are commonly used in systems like the Syntace X-12, which is licensed for custom frames and offers compatibility with various axles from brands like Syntace and DT Swiss.

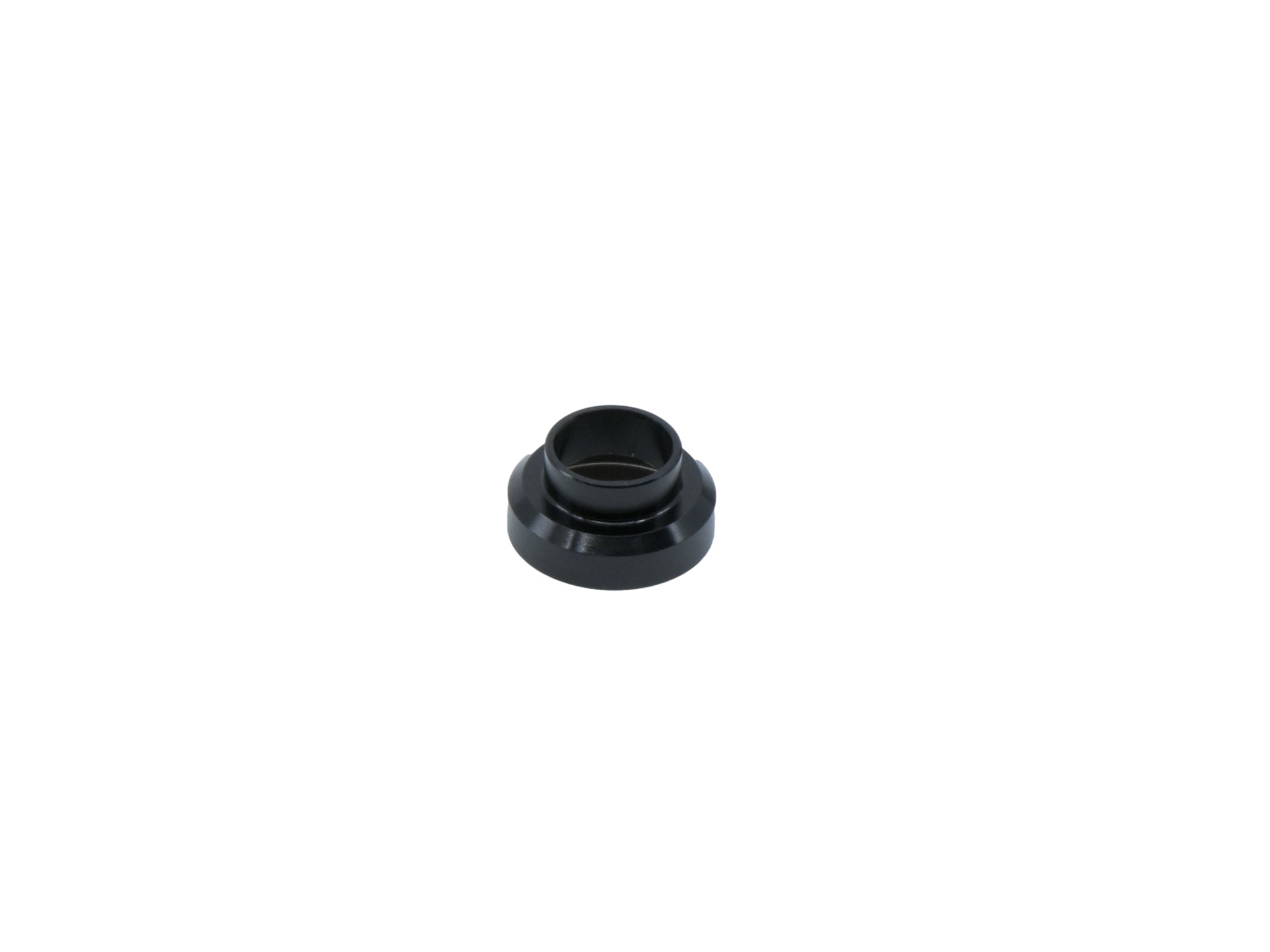

To visualize, here’s an example of a typical concentric dropout insert:

This small but mighty part ensures that your rear wheel sits perfectly aligned, reducing wear on components and improving overall ride quality. It’s particularly vital in frames where manufacturing tolerances might vary slightly, allowing builders to fine-tune the setup post-construction.

The History and Evolution of Dropout Inserts in Cycling

Bicycle dropouts have evolved significantly since the early days of cycling. Traditional open dropouts relied on quick-release levers, but as bikes tackled rougher terrains and higher speeds, the need for more secure systems arose. Enter thru-axle dropouts, popularized in the early 2010s, which use a threaded axle for better rigidity.

The concentric dropout insert emerged as part of this evolution, especially with systems like Syntace’s X-12. Launched around 2015 by companies like Paragon Machine Works, these inserts addressed the need for adjustability in custom frames. Initially aimed at handmade steel and titanium frames, they’ve since found their way into production bikes from brands like BMC, where they’re used in models such as the Teamelite series starting from 2016.

Over time, the design has refined to include options for different axle standards, like 142mm or Boost 148mm, making the concentric dropout insert a staple in modern framebuilding. This progression reflects the cycling industry’s shift toward modularity and precision engineering.

Concentric vs. Eccentric Dropout Inserts: Key Differences

When discussing dropout inserts, it’s essential to differentiate between concentric and eccentric types, as they serve slightly different purposes.

A concentric dropout insert, as mentioned, has centered threading. It’s ideal for standard geared bikes where chain tension isn’t a primary concern, focusing instead on wheel alignment and camber adjustment. This ensures the wheel is perpendicular to the frame, preventing issues like uneven tire wear or handling imbalances.

In contrast, an eccentric dropout insert features offset threading, allowing for greater adjustability. This is particularly useful in single-speed or fixed-gear bikes, where it helps tension the chain by shifting the axle position slightly. For example, in systems like Paragon’s SRAM Full Mount/UDH, eccentric inserts can adjust up to a few millimeters, which is crucial for belt-drive or internally geared hubs.

Here’s a quick comparison table to highlight the differences:

Choosing between them depends on your bike’s drivetrain. For most multi-gear setups, a concentric dropout insert suffices, providing stability without unnecessary complexity.

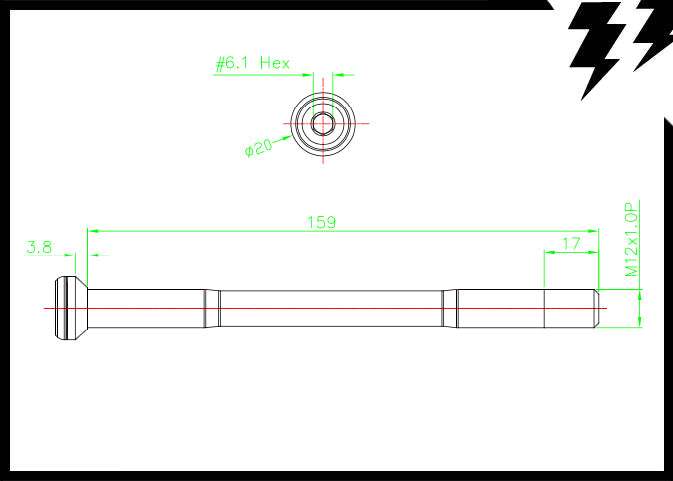

For a clearer view, check this diagram of a Syntace X-12 style insert and axle:

Benefits of Using a Concentric Dropout Insert

Incorporating a concentric dropout insert into your bike frame offers several advantages that enhance both performance and maintenance.

1. Improved Wheel Alignment: Post-frame construction, slight misalignments can occur. The insert allows builders to dial in perfect positioning, ensuring smooth rolling and better handling.
2. Enhanced Frame Durability: By distributing forces evenly through the thru-axle, it reduces stress on the frame’s dropouts, prolonging the life of your bike.
3. Compatibility and Versatility: These inserts work with various axle lengths and standards, making them suitable for upgrades or custom builds. For instance, they’re compatible with Shimano Direct Mount derailleurs.
4. Lightweight Design: Made from high-grade materials, they add minimal weight while providing maximum strength – perfect for weight-conscious riders.
5. Ease of Maintenance: Swapping wheels becomes quicker and more secure, ideal for trail-side repairs or race pit stops.

Riders using bikes like the BMC Agonist or custom titanium hardtails often report smoother rides and fewer alignment issues after installing a quality concentric dropout insert.

How Does a Concentric Dropout Insert Work?

Understanding the mechanics behind a concentric dropout insert reveals its ingenuity. The insert threads into the right-side dropout of the frame, which is typically a closed structure in thru-axle designs. The thru-axle then screws into this insert, locking the wheel in place.

In practice:

• The frame’s dropout has a recess or hood where the insert sits.
• For adjustment, you can rotate the insert slightly before tightening, aligning the wheel.
• This setup contrasts with sliding dropouts, which move the entire axle position for chain tension.

In custom frames, builders weld or bond the dropout, then install the insert for final tweaks. It’s a simple yet effective system that bridges manufacturing imperfections.

Here’s an example of dropout inserts in a kit form, showing how they integrate with axles:

Installation Guide for Concentric Dropout Inserts

Installing a concentric dropout insert is straightforward but requires care to avoid cross-threading. Here’s a step-by-step process:

1. Gather Tools: You’ll need a torque wrench, thread locker (like Loctite), and the appropriate axle.
2. Prepare the Dropout: Clean the dropout threads thoroughly to remove dirt or old grease.
3. Insert the Piece: Screw the concentric dropout insert into the right-side dropout by hand until snug.
4. Align and Torque: Use the torque wrench to tighten to the manufacturer’s specs (usually 10-15 Nm). Check wheel alignment by installing the axle and wheel.
5. Test Ride: Spin the wheel to ensure no wobble, and take a short ride to verify handling.

For BMC-specific models, like the Teamelite, the insert is a direct replacement part numbered 222956. Always consult your bike’s manual or a professional mechanic if unsure.

Compatible Bikes and Brands

The concentric dropout insert shines in compatibility. Popular brands include:

• BMC: Used in models like Teamelite and Agonist, with black anodized aluminum inserts.
• Paragon Machine Works: Offers Syntace-compatible inserts in aluminum and titanium for custom frames.
• Syntace: The originator of the X-12 system, with inserts for steel and titanium dropouts.

Other brands like Curve Cycling and Myth Cycles provide kits for hardtail MTBs, allowing switches between drivetrains like Pinion or Rohloff.

See this image of a BMC bike, which often incorporates such inserts:

Maintenance and Troubleshooting Tips

To keep your concentric dropout insert performing optimally:

• Regular Cleaning: Remove the axle and inspect for debris every few months.
• Check for Wear: Look for stripped threads; replace if damaged.
• Lubrication: Apply anti-seize compound during installation to prevent seizing.

Common issues include misalignment causing rubbing brakes – resolved by re-torquing the insert. If using titanium versions, note their superior corrosion resistance for wet conditions.

Buying Guide: Choosing the Right Concentric Dropout Insert

When shopping, consider:

• Material: Aluminum for affordability, titanium for durability and lightness.
• Size and Thread Pitch: Match your axle (e.g., M12x1.0 for Syntace).
• Brand Compatibility: Ensure it fits your dropout system.

Prices range from $20-50, available at shops like Paragon or BMC’s online store. Read reviews for real-user experiences, especially on forums like Reddit’s r/cyclocross.

Here’s another close-up of a concentric insert for reference:

Conclusion: Why the Concentric Dropout Insert Matters for Your Ride

The concentric dropout insert may be a small component, but its impact on bicycle performance is profound. From ensuring precise alignment to enabling custom tweaks, it’s a must-have for serious cyclists. Whether upgrading an existing bike or building from scratch, investing in a quality insert can transform your riding experience. Explore options from trusted brands, and you’ll see why this piece is gaining traction in the cycling community. Happy riding!
