Cable Guide – No 21: Your Complete Guide to Maintaining Clean Lines and Reliable Shifting on BMC Road Bikes

Modern road bikes prioritize sleek aesthetics and aerodynamic efficiency, and nothing achieves that better than full internal cable routing. If you own a BMC ALR or ALR Disc model, you already know how those hidden cables create a clean frame with no external clutter. But what happens when a guide wears out, cracks, or gets lost during a cable replacement? That’s where the Cable Guide – No 21 comes in as the official BMC spare part designed specifically to restore factory performance.

In this in-depth guide, we’ll cover everything you need to know about the Cable Guide – No 21 — from its exact specifications and compatibility to step-by-step installation tips, benefits, maintenance advice, and why it’s worth keeping in your toolbox. Whether you’re a weekend warrior, a serious racer, or a home mechanic tackling your first internal routing job, this article will help you keep your BMC bike shifting and braking like new.

What Is the Cable Guide – No 21 and Why Does It Matter?

The Cable Guide – No 21 is an official BMC Switzerland spare parts kit created for their popular ALR series road bikes. These high-performance aluminum road machines rely on precise internal cable routing to protect shift and brake cables from the elements while delivering crisp, low-friction performance.

Unlike generic aftermarket guides, the Cable Guide – No 21 is engineered to fit perfectly inside the frame’s designated ports and channels on compatible BMC models. It prevents cables from rubbing against carbon or aluminum edges, reduces noise, and maintains smooth operation even after thousands of kilometers.

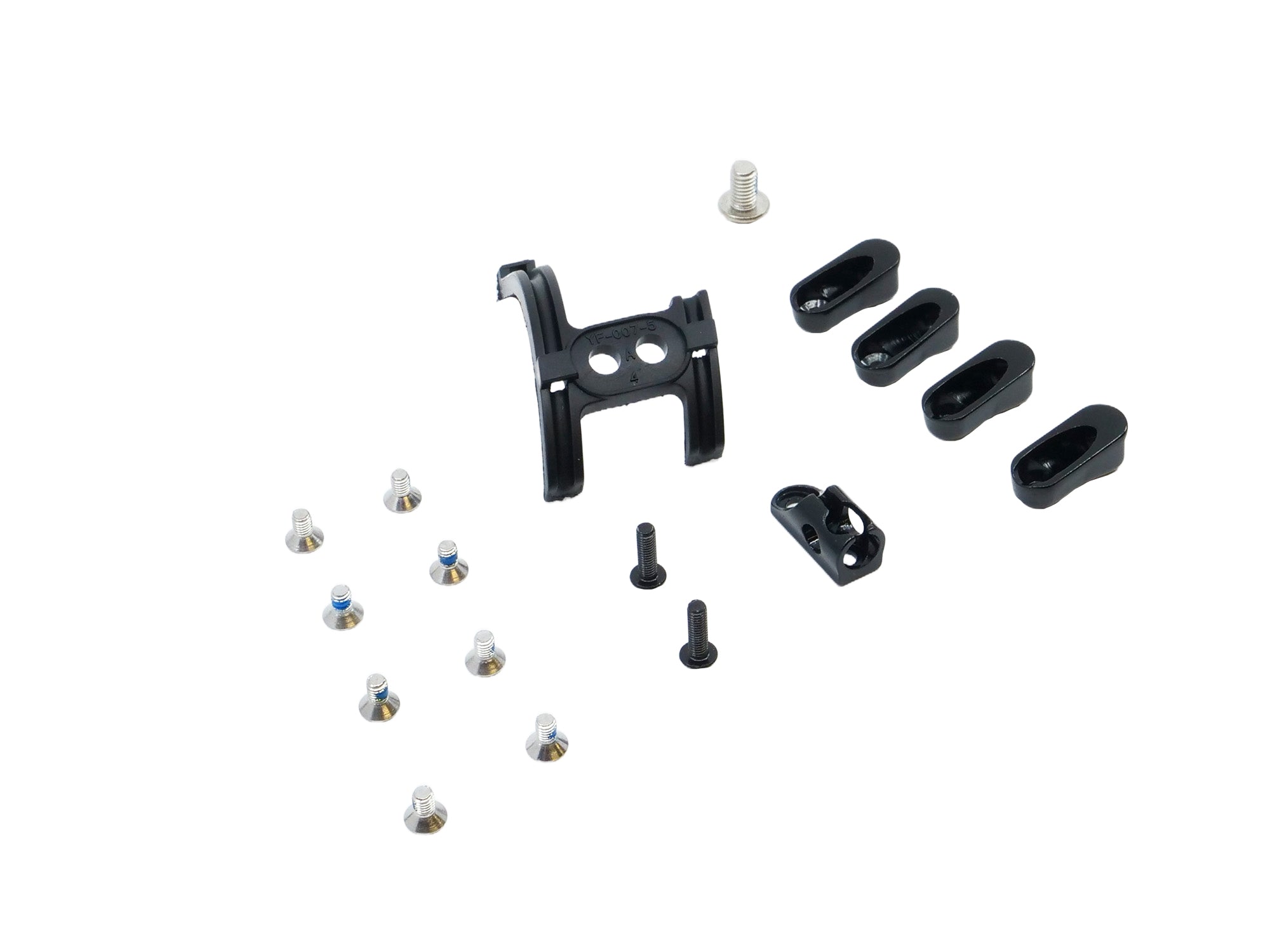

What’s included in the Cable Guide – No 21 kit?

• 1 main plastic guide (the larger frame-style piece)
• 5 metal guides (oval-shaped inserts for cable protection)
• 1 bolt
• 2 long screws
• 8 small screws

Everything you need for a complete repair or upgrade in one affordable package priced at just USD 25.00. The kit arrives ready to install with no additional tools required beyond basic hex keys and cable cutters you probably already own.

Compatibility: Which Bikes Need the Cable Guide – No 21?

This spare part is officially listed as compatible with:

• BMC ALR Disc
• BMC ALR (non-disc versions)

These bikes feature BMC’s sophisticated internal routing system that routes both mechanical shift cables and hydraulic brake hoses (or mechanical brakes on older models) completely inside the frame and through the fork. If you’ve ever removed the handlebar or bottom bracket area on an ALR and noticed missing or damaged plastic/metal guides, the Cable Guide – No 21 is the exact replacement you need.

Note that this specific numbered kit (No 21) is tailored to the ALR platform. Other BMC models like the Teammachine or Twostroke use different numbered guides (e.g., No 28), so always double-check your frame’s service manual or part diagram before ordering.

Key Benefits of Using the Official Cable Guide – No 21

Investing in the genuine Cable Guide – No 21 delivers advantages that cheap universal guides simply can’t match:

1. Perfect Fit and Zero Guesswork — The plastic and metal pieces are precision-molded to slot exactly into the ALR frame’s internal channels. No trimming, no filing, no frustrating trial-and-error.
2. Superior Cable Protection — The metal guides act as smooth liners that prevent housing from chafing against the frame, extending cable life dramatically.
3. Maintained Performance — Properly routed cables mean lighter lever feel, faster shifting, and consistent braking power — especially important on disc brake models where hydraulic lines must stay kink-free.
4. Factory Aesthetics Restored — Keep that signature BMC clean look with no visible cable rub marks or protruding guides.
5. Weather Resistance — The durable plastic and metal construction stands up to rain, mud, and road grime far better than improvised solutions.

Many riders report that replacing worn guides with the Cable Guide – No 21 instantly quiets noisy cables and restores that “new bike” shifting feel.

Step-by-Step Installation Guide for Cable Guide – No 21

Installing the Cable Guide – No 21 is a straightforward DIY project that most mechanically inclined riders can complete in under an hour. Here’s how:

Tools You’ll Need

• Allen/hex keys (4mm, 5mm, 6mm)
• Cable cutters
• Sharp knife or housing cutter
• Isopropyl alcohol for cleaning
• Cable lube or grease (optional but recommended)

Installation Steps

1. Prepare the Bike — Shift into the smallest cog and smallest chainring. Remove the rear wheel for easier access to the chainstay area. Loosen the stem and slide the handlebar forward if needed for top-tube access.
2. Remove Old Guides — Carefully extract any broken or loose plastic/metal pieces from the frame ports. Use a magnet tool if screws have fallen inside the frame.
3. Clean the Channels — Wipe out the internal routing paths with a clean rag and alcohol. This ensures the new Cable Guide – No 21 seats perfectly.
4. Install the Main Plastic Guide — Position the larger plastic piece into its designated frame slot. Secure it with the provided bolt and long screws. Tighten to spec (usually 3-5 Nm — don’t overtighten).
5. Insert Metal Guides — Slide the five oval metal guides into their respective ports along the top tube, down tube, and chainstays. These act as protective sleeves for the cable housing.
6. Route New Cables — Feed fresh shift housing and brake lines (or hoses) through the frame using a guide wire or magnet method. The Cable Guide – No 21 will keep everything aligned and protected.
7. Final Adjustments — Reinstall the handlebar, tighten all bolts, and perform a full brake and shift adjustment. Test ride and fine-tune as needed.

Pro tip: Take photos of the cable routing before disassembly — it makes reassembly much easier. If you’re uncomfortable with internal routing, most professional bike shops can install the Cable Guide – No 21 while performing a full cable service.

Common Problems the Cable Guide – No 21 Solves

Over time, internal cable guides can crack from vibration, UV exposure, or improper installation. Symptoms include:

• Rattling or clicking noises
• Stiff or inconsistent shifting
• Premature cable wear
• Visible cable rub marks inside the frame

Replacing with the official Cable Guide – No 21 kit eliminates these issues and prevents expensive frame damage down the line.

Maintenance Tips to Extend the Life of Your Cable Guides

Once installed, keep your Cable Guide – No 21 performing perfectly with these habits:

• Replace cables every 2,000–4,000 km depending on conditions
• Use high-quality compressionless housing
• Apply a drop of lube at entry/exit points twice a year
• Avoid forcing cables through dry or dirty ports
• Inspect guides during every major service

Following these steps can easily double the lifespan of your entire drivetrain.

Cable Guide – No 21 vs. Generic Alternatives

While third-party cable guides exist, they often require modification and may not align perfectly with the ALR’s specific port angles. The official BMC kit guarantees compatibility, includes all necessary hardware, and maintains the manufacturer’s warranty on your frame. At only $25, it’s a small price for peace of mind and factory-level performance.

Where to Buy the Cable Guide – No 21

The safest place to purchase is directly from the official BMC website (us.bmc-switzerland.com or your regional BMC store). It’s listed as “In stock, ready to ship” in most regions. Authorized BMC dealers can also order it for you if you prefer in-person service.

Frequently Asked Questions About Cable Guide – No 21

Is the Cable Guide – No 21 compatible with electronic shifting? Yes — it works perfectly with both mechanical and electronic groupsets (Di2, AXS, etc.) since the guides protect the housing regardless of shifter type.

Can I use this kit on non-BMC bikes? While technically possible on similar frames, we recommend it only for confirmed ALR/ALR Disc models to ensure proper fit.

How many guides come in one kit? The kit contains enough pieces for a complete rear triangle and top-tube repair on one bike.

Does installation require special BMC tools? No — standard bike tools are sufficient.

Final Thoughts: Keep Your BMC Riding Smooth with Cable Guide – No 21

The Cable Guide – No 21 may be a small component, but it plays a huge role in preserving the premium ride quality and stunning looks that BMC bikes are famous for. Whether you’re replacing a damaged guide after a crash or simply refreshing your cable setup, this official spare part delivers factory-perfect results every time.

Don’t wait until shifting feels sluggish or cables start rattling. Grab your Cable Guide – No 21 kit today and enjoy thousands more trouble-free kilometers on your ALR road bike.

Have you installed the Cable Guide – No 21 on your BMC? Share your experience in the comments below — we’d love to hear your tips!

Always consult your BMC owner’s manual and torque specifications before performing maintenance. If in doubt, visit a certified BMC dealer.
